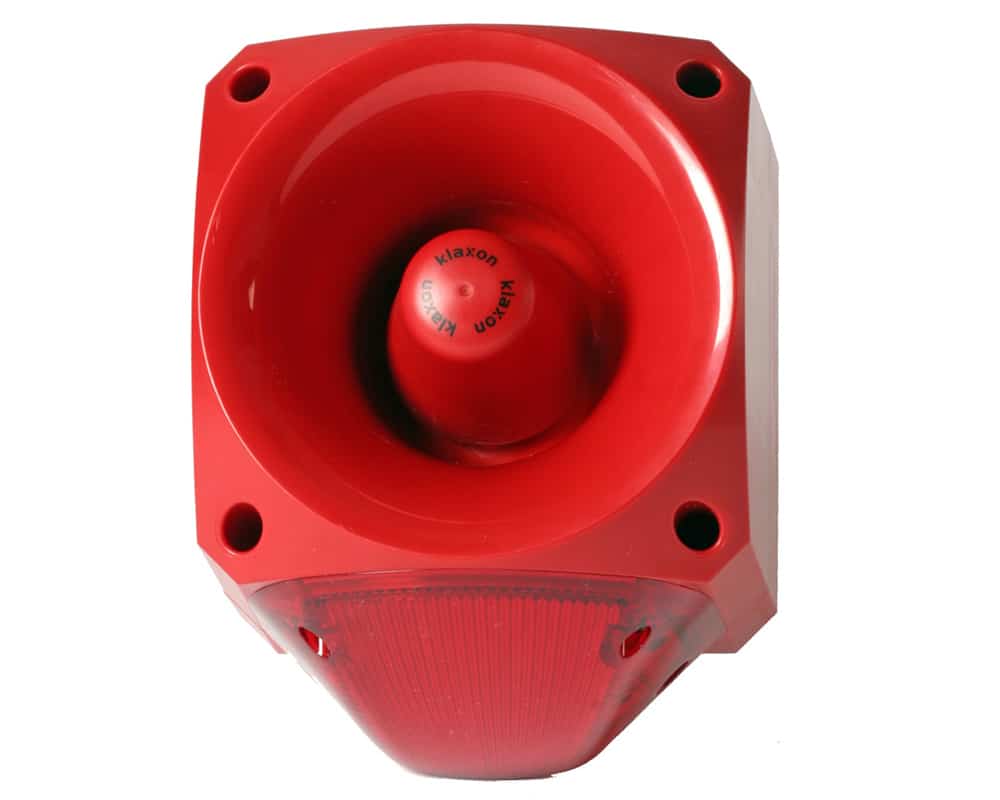

Sounder Beacon Red Xenon Nexus 120 db@1m High Output 10-60V DC

Models 105dB 110dB & 120dB units. AC version also available.

Nexus Sounder Beacon is available with a high efficiency LED or high output xenon beacon.

Combination powerful sounder and high output beacon ensures a very effective audio-visual signal.

Key Features

Sound Output up to 120 db@1m depending on model variant

Beacon 5J xenon or high efficiency LED beacon option

Tones 64 tones with Three alarm stages if needed

Ingress protection IP66 rated

DC Voltages available 10-60V DC

Origin UK

Rating Continuous

Features & Applications

Features

High output sounder beacons certified to EN54.
5J xenon or high efficiency LED beacon option
Quarter turn fasteners for ease of installation
First-fix, wire to base technology
IP66 rated
Three alarm stages
Low in-rush current (LED only)
Static/flashing mode (LED only)
Volume control for greater flexibility – 20dB
64 tones
Nexus Sounder Beacon is available with a high efficiency LED or high output xenon beacon.
The combination of a powerful sounder and high output beacon ensures a very effective audio-visual signal. 110dB and 120dB units.

Applications

Industrial & Factory applications
School & University siren
Smoko or lunch siren
Footy sporting grounds
Outdoor & Indoor areas
Club & Football sporting oval

Technical Specifications

Sound Output up to 120db@1m depending on model variant

Protection Rating IP66

Frequency varies See Tone Table - as Frequenzy varies depending on tone chosen

Cable entries 5

Operating temp -25ºC to +70ºC

Weight Nexus 120: 2.0kg
Nexus 105: 0.8kg
Nexus 110: 1.2kg

Current consumption Low consumption - see data and installation sheets attached for your model

Connections are made to the base during the initial wiring phase which results in faster and more reliable installation. In addition, the head is fixed by quarter turn fasteners avoiding the need to screw up four individual screws thus enabling faster installation and accurate seal compression for weatherproofing.
